Mounting and Wiring

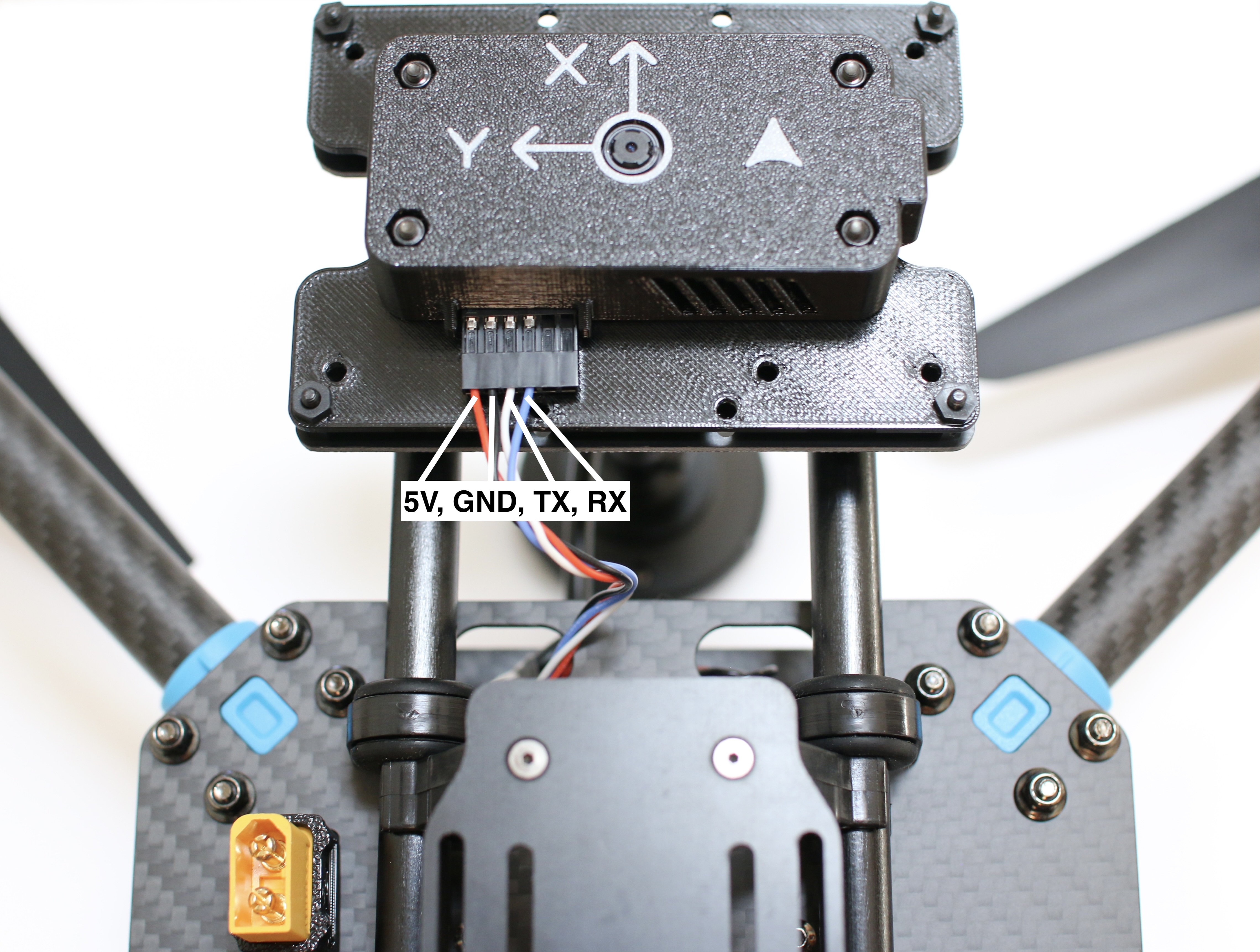

1. Mount the Landmark module
   • Camera faces down.
   • X axis points in the forward direction of the UAV.
   • To improve image stability, mount the module on a vibration-isolation platform (or equivalent damping mount) when possible.
2. Connect to the flight controller

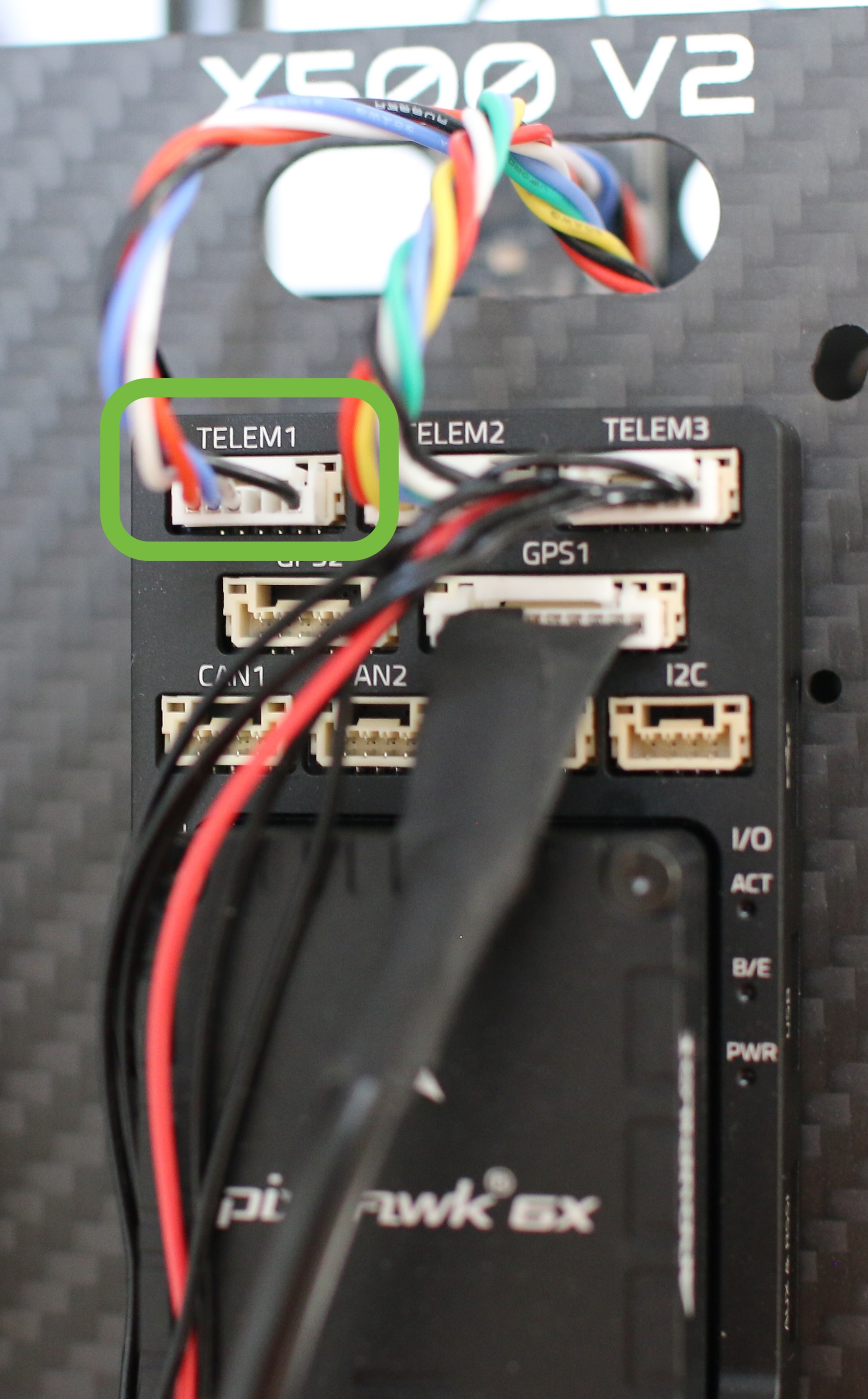

   • Using the included cable, plug the Landmark module into a TELEM port.

info

Ensure the Landmark module receives the required 2.5 W (5 V at 0.5 A) of power. We recommend powering the flight controller using a battery, rather than USB.
In addition, confirm the TELEM port can handle the power draw of the Landmark module. Prefer a TELEM port with a higher current limit. For example, TELEM1 on the Pixhawk 6X has a 1.5 A limit. All other ports have a combined 1.5 A limit.
